Customized Stainless Steel Spiral Sand Washer with 40-280 tons/hour Capacity for Efficient Gravel Washing

Customized Stainless Steel Spiral Sand Washer with 40-280 tons/hour Capacity for Efficient Gravel Washing

Merknaam:	WeSeW
Modelnummer:	Kai001
MOQ:	1 stks
Prijs:	US$20,000~US$80,000 per pc
Betalingsvoorwaarden:	T/T, Western Union
Toeleveringsvermogen:	10000 stks per maand

Detailinformatie

Productbeschrijving

Detailinformatie

Plaats van herkomst:

CHINA

Certificering:

CE,UL

Materiaal:

Roestvrij staal/gewoonte

Materiële functie:

Warmteweerstandaard, brandbestendig

Sollicitatie:

Chemische industrie, graantransport, mijnbouwtransport, energiecentrale

Kerncomponenten:

Motor

Dimensie (L*W*H):

Aangepast

Specificatie:

Aangepast

Structuur:

Transportsysteem

Verpakking Details:

Houten behuizing

Levering vermogen:

10000 stks per maand

Markeren:

Customized Spiral Sand Washer

Stainless Steel Screw Sand Washing Machine

40-280 tons/hour Sand Screw Washer

Productbeschrijving

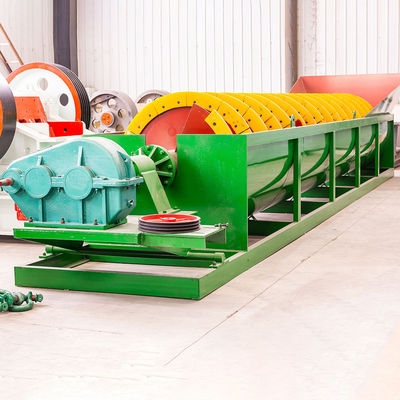

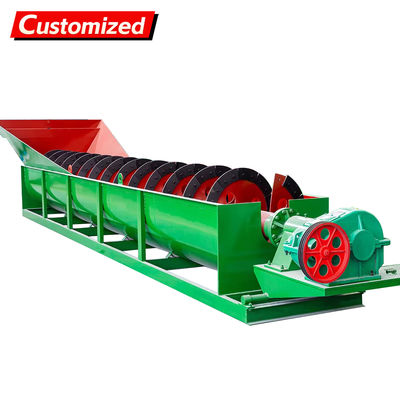

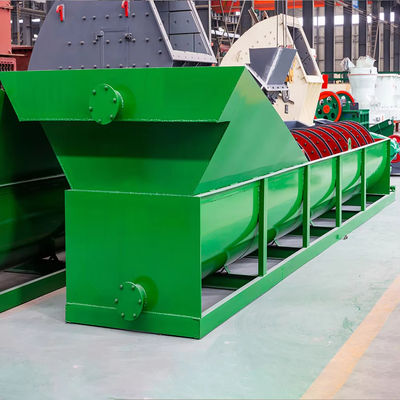

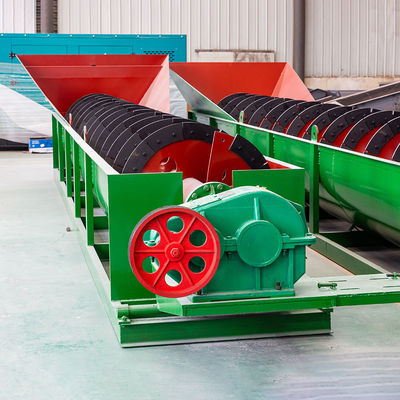

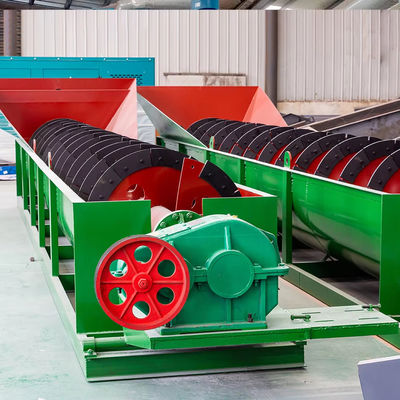

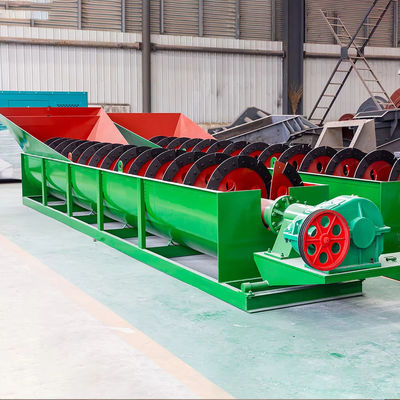

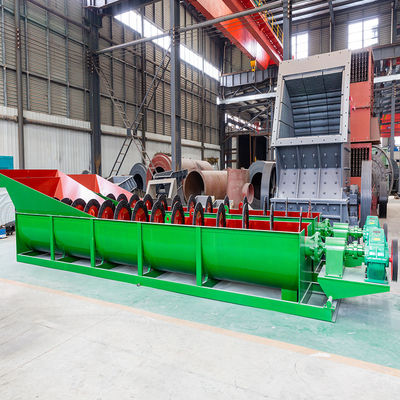

Customized Single Spiral Aggregate Sand Gold Washing Machine

Our industrial-grade Spiral Sand Washing Machine efficiently cleans and separates dirt, dust, and impurities from sand, gravel, or crushed stone. Utilizing a rotating screw mechanism with water flow, it delivers high-quality washed materials for construction, mining, and aggregate applications.

Key Features

High cleaning efficiency: Removes dirt, clay and organic impurities effectively
Low water consumption: Environmentally friendly operation
Robust construction: Made of wear-resistant steel for durability
Energy efficient: AC motor with ISO9001 & CE certifications
Comprehensive support: 1-year warranty with lifetime spare parts supply

Technical Specifications

Product Name	Industrial Spiral Screw Classifier Sand Washing Machine
Motor Type	AC Motor
Capacity	6-400t/h
Core Components	Bearing, Gearbox, Motor
Weight	500 KG
Applications	Motorway construction, hydropower projects, building material washing, classification

Detailed Technical Parameters

Model	Spirals Number	Screw Diameter (mm)	Sink Length (mm)	Capacity (t/h)	Motor Power (kw)
XL920-7.5	1	920	3600	40-60	4P-11
2XL920-7.5	2	920	7500	90-120	4P-11X2
XL1120-7.5	1	1120	5000	40-120	4P-18.5
2XL1120-7.5	2	1120	10000	80-240	4P-18.5X2
XL1500-9	1	1500	9800	100-170	4P-22
2XL1500-9	2	1500	18000	200-280	4P-22X2

Working Principle

The Spiral Sand Washer operates through a synergistic process of agitation, settling and material transportation. As the sand-cement slurry enters the inclined trough, the rotating spiral blades agitate the mixture while gravity settles heavier sand particles. Lighter impurities remain in suspension and are washed away by water flow. The spiral simultaneously conveys the cleaned sand up the slope while discharging excess water through tank holes.

Environmental Protection Measures
