Customized Auger Drilling Rig, Auger Drilling Rig, Rotary Drilling Rig Single-Flute Straight Auger Bit (Toothed) For construction in clay layers, highly weathered layers, and gravel layers

Customized Auger Drilling Rig, Auger Drilling Rig, Rotary Drilling Rig Single-Flute Straight Auger Bit (Toothed) For construction in clay layers, highly weathered layers, and gravel layers

Merknaam:	WeSeW
Modelnummer:	RG-717
MOQ:	1 st
Prijs:	Price Negotiation
Betalingsvoorwaarden:	T/T, Western Union
Toeleveringsvermogen:	1000000 stuks per maand

Detailinformatie

Productbeschrijving

Detailinformatie

Plaats van herkomst:

China

Certificering:

CE,UL

Rotatierichting:

Met de klok mee/tegen de klok in

Schroeftype:

Helicoïde of sectionaal

kracht:

Hoge treksterkte

Toepasselijke industrieën:

Productiefabriek, energie en mijnbouw

Gebruik:

Transportband

Bedrijfsmodus:

Handmatig of automatisch

Hellingshoek:

0-45 graden

Functies:

Flexibel ontwerp, gemakkelijk schoon te maken

Verpakking Details:

Houten kist

Levering vermogen:

1000000 stuks per maand

Markeren:

single-flute straight auger bit

auger drilling rig for clay

rotary drilling rig with toothed bit

Productbeschrijving

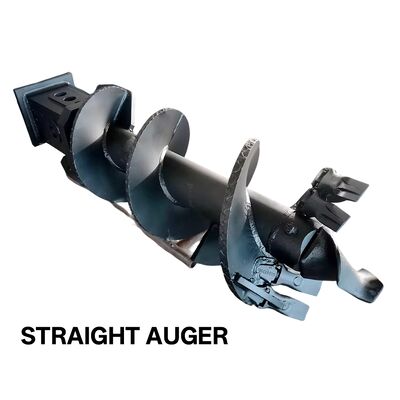

Customized Auger Drilling Rig - Single-Flute Straight Auger Bit (Toothed)

Professional rotary drilling rig auger bit designed for efficient construction in clay layers, highly weathered layers, and gravel layers.

Product Specifications

Warranty: 2 Years

Quality Assurance: Video outgoing-inspection & Machinery Test Report Provided

Applicable Layers: Clay, high-weathered layer, gravel, etc.

Drilling Diameter: 600-2000 mm

Spiral Height: 1500 mm

Weight: Customized as requested

Bottom Type: Double bottom and double cut, Single bottom and double cut

Key Advantage: High Performance

Straight Auger Design Features

Straight type design optimized for efficient soil carrying capacity
Double cutter configuration ensures uniform force distribution and prevents hole inclination
Dual spiral design facilitates soil transport; single spiral configuration ideal for cohesive soil dumping
Versatile application across various geological layers including clay, weathered formations, and gravel

Note: All measurements in millimeters (mm); weight in kilograms (kg)

Technical Specifications Table

Pile Dia. (mm)	Spiral HIT. (mm)	Spiral Pitch (mm)	Spiral THK. (mm)	Spiral OD. (mm)	Teeth No.	Weight (kg)
φ600	1500	600+400	30+20	550	6	550
φ800	1500	600+400	30+20	750	9	800
φ900	1550	600+500	30+20	850	10	850
φ1000	1500	600+600	30+20	950	11	900
φ1200	1500	600+600	30+30	1150	13	1250
φ1500	1500	600+600	30+30	1450	16	1750
φ1600	1500	600+600	30+30	1550	17	1900
φ1800	1500	600+600	35+30	1750	21	2600
φ2000	1500	600+600	35+30	1950	22	3050
