Food-Grade Stainless Steel Spiral Blade with Uniform Thickness Technology for Corrosion-Resistant Conveying

Food-Grade Stainless Steel Spiral Blade with Uniform Thickness Technology for Corrosion-Resistant Conveying

Merknaam:	WeSeW
Modelnummer:	AC0075
MOQ:	1 st
Prijs:	US$200~US$1000/pc
Betalingsvoorwaarden:	T/T, Western Union
Toeleveringsvermogen:	10.000 stuks per maand

Detailinformatie

Productbeschrijving

Beoordelingen & Recensies

Detailinformatie

Plaats van herkomst:

China

Certificering:

CE/UL

Materiaal:

Roestvrij staal

Materiaaleigenschap:

Hittebestendig, brandwerend

Sollicitatie:

Chemische industrie, graantransport, mijnbouwtransport, energiecentrale

kerncomponenten:

Motor

Afmeting (l*b*h):

Aangepast

Transportpakket:

HOUTEN KIST

Specificatie:

Aangepast

After-sales service:

Mits

Structuur:

Transportsysteem

Maatwerk:

Beschikbaar aangepast verzoek

Verzendkosten:

over verzendkosten en geschatte levertijd.

Retourneren en terugbetalingen:

U kunt tot 30 dagen na ontvangst van de producten een terugbetaling aanvragen.

Verpakking Details:

houten kist

Levering vermogen:

10.000 stuks per maand

Productbeschrijving

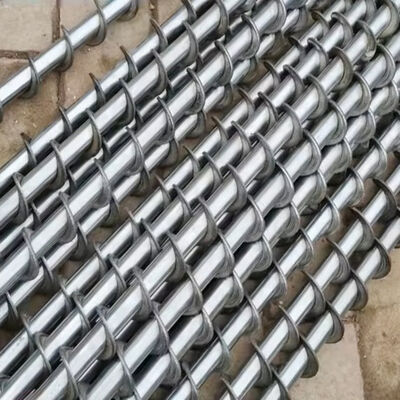

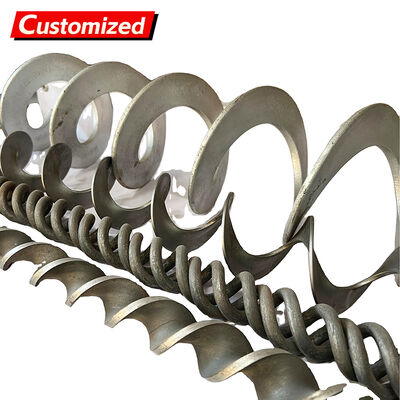

Continuous Uniform-Thickness Helical Blades

Made of food-grade stainless steel, the continuous, uniformly thick spiral blades are high in strength and corrosion-resistant, making them suitable for both retail and agricultural applications. They efficiently transport bulk materials and can be customized.

Use	Harvesters
Type	Blades
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Weight (kg)	20
Dimension (ODIDP*T)	Customized
Material	Carbon steel, manganese steel, stainless steel, wear-resistant steel
Applicable Industries	Screw conveyor, agricultural machine, energy & Mining
Usage	Material Transmission
Advantage	Easy Operation, High Efficiency
OD (mm)	≤500mm
Strip Width (mm)	≤80mm
Thickness (mm)	≤20mm

Key Features

Winding on the mould
Continuous equal-thickness technology compensates for parameters of small sizes and dimensions that are difficult to form with cold rolled blades
High forming accuracy with essentially the same thickness for outer and inner edges
High material utilization and forming efficiency
Material options: Carbon steel, manganese steel, stainless steel

Specifications

Thickness 2-5mm: Strip width ≤30mm

Thickness 6-10mm: Strip width ≤50mm

Thickness 10-20mm: Strip width ≤80mm

Customization Requirements

Provide the following details and we will make good suggestions for you: outer diameter, inner diameter, pitch, thickness, spiral direction (left or right), material.

Technical Advantages

Continuous, uniform-thickness helical blades are the core component of screw conveyors. Their uniform thickness across the entire helical surface solves the problems of stress concentration and easy deformation inherent in traditional cold-rolled blades, offering significant advantages in industrial conveying.

Manufactured using winding or segmented stamping processes, thickness deviation can be controlled within ±0.1mm, resulting in substantial improvement in mechanical properties. Maximum stress is reduced by more than 15% compared to traditional blades.

Made with 304 or 316L stainless steel, they offer outstanding corrosion resistance, with a service life three times that of carbon steel blades in chloride ion and acid/alkali environments. Surface roughness Ra≤0.8μm reduces fluid resistance by 20%, lowering conveying energy consumption.

These blades are suitable for various applications: small-sized wound blades for food processing machinery and agricultural harvesters (conveying efficiencies up to 20t/h); large-sized segmented stamped blades for heavy-duty conveying in mines and cement production lines. 40mm thick wear-resistant steel blades have a lifespan of over 8 years.
